In this part, the folder with the theme’s name is copied into
a cache section on the server. The folder is placed alongside the default
themes provided with the Application Designer, located on the web front end
server, within the
C:\Program Files\Common Files\Microsoft Shared\Web Server
Extensions\14\TEMPLATE\LAYOUTS\AppDesigner\Content-Cache\Apps\ApplicationDesigner\css\1.8.10\themes
directory. In a Farm installation, this work will need to be performed on
all web front end servers.
1.
On the web front end server, navigate to the following directory:
C:\Program
Files\Common Files\Microsoft Shared\Web Server
Extensions\14\TEMPLATE\LAYOUTS\AppDesigner\Content-Cache\Apps\ApplicationDesigner\css\1.8.10\themes

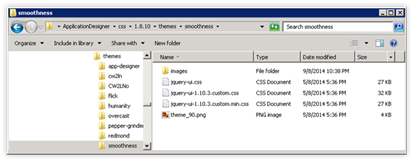

2. Create a new directory, based on the name of the theme. Make a note of the directory name as it will be used in step 21.
3. Place a 90 pixel by 90 pixel PNG image into the directory. The file must be named theme_90.PNG and will be displayed in the Application Designer’s Design Canvas theme selection page.
4. Copy the contents of the custom theme from the decompressed ZIP in Part II into the new directory. The contents to be copied into the new directory is the folder with the custom name (where the jquery-ui.css file was renamed).
5. Repeat these steps on all web front end servers.
